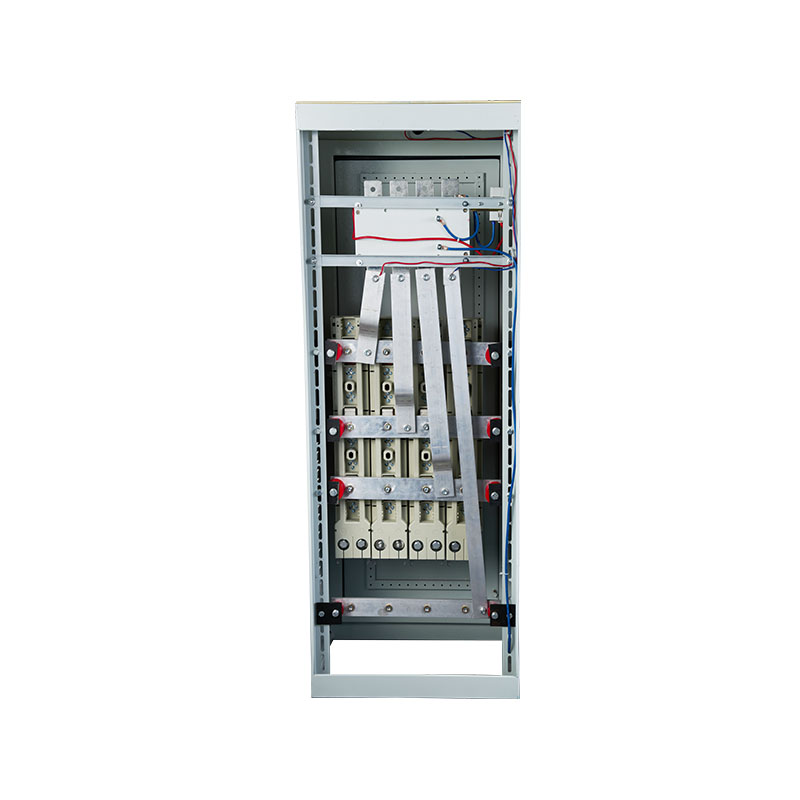

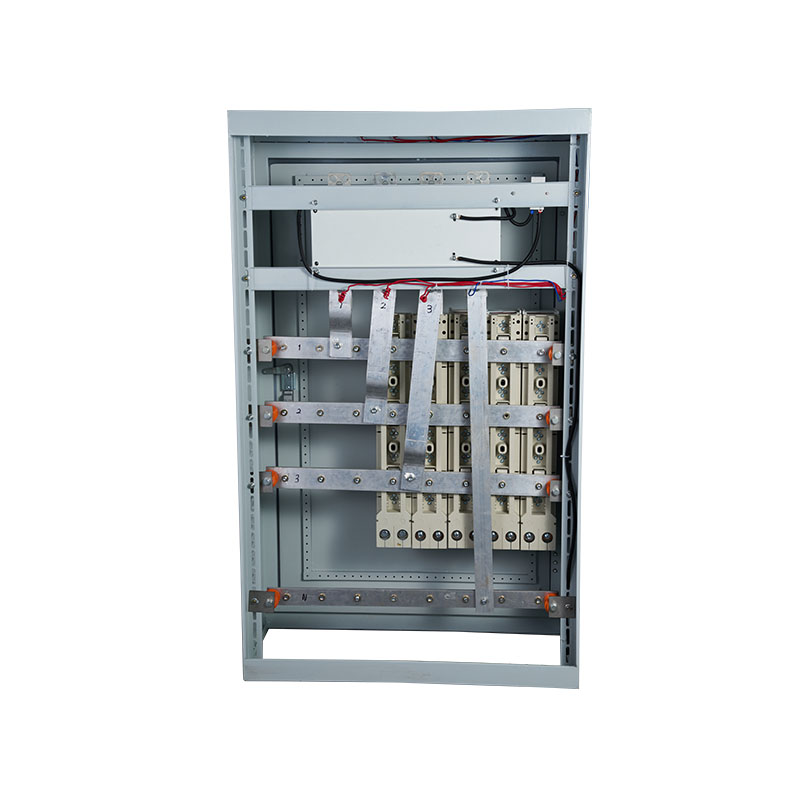

JUNW TUR Series TR4-800/TR8-1200 Isolating Switch

JUNW TUR Series Low-Voltage Isolation Switchgear
1.Core Model & Protection Performance
JUNW TUR series low-voltage isolation switchgear covers TR4-800 and TR8-1200 models, working at 400V rated voltage. TR4-800 supports up to 4 circuits with 800A maximum carrying current; TR8-1200 manages up to 8 circuits with 1200A maximum carrying current, providing centralized protection for multi-loop power distribution.
2.Universal Blade Fuse Adaptation

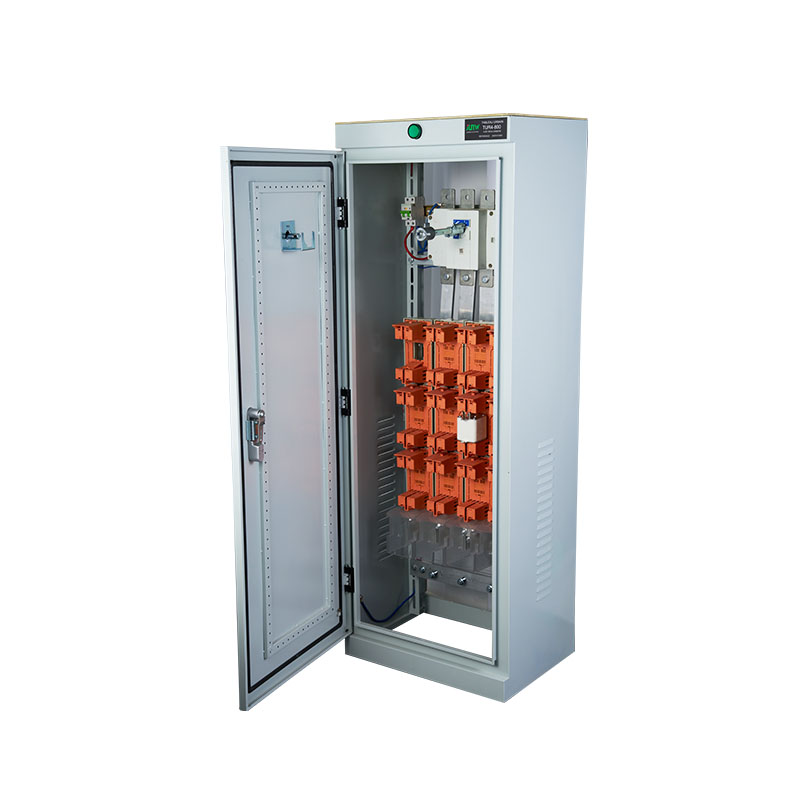

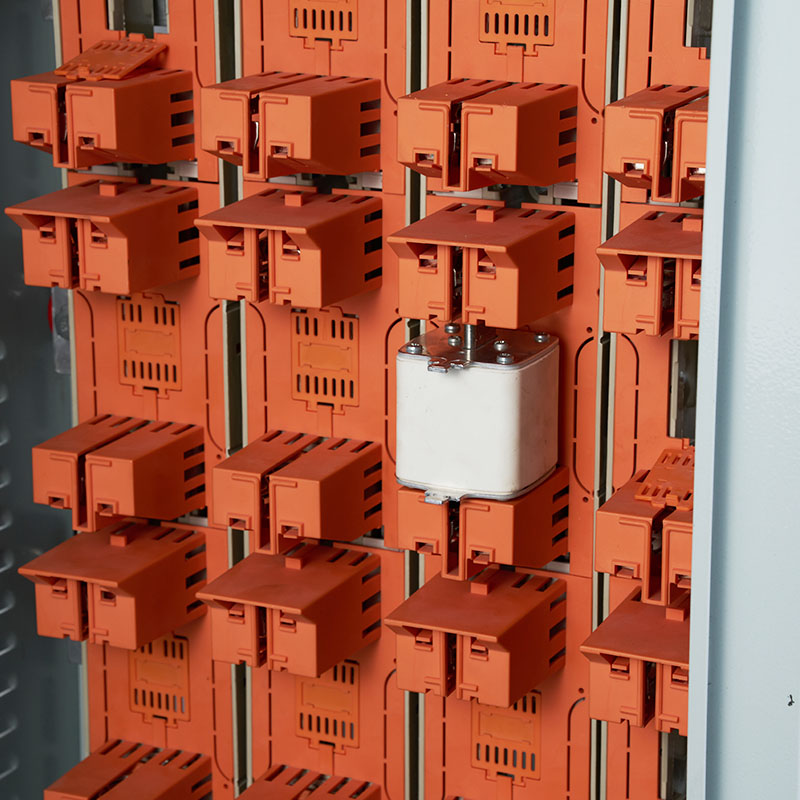

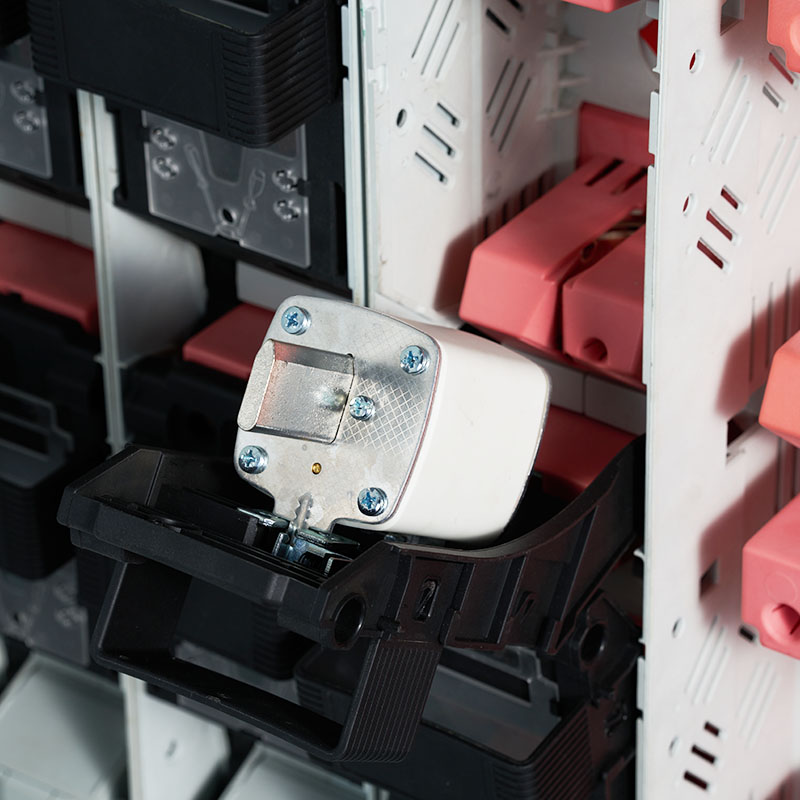

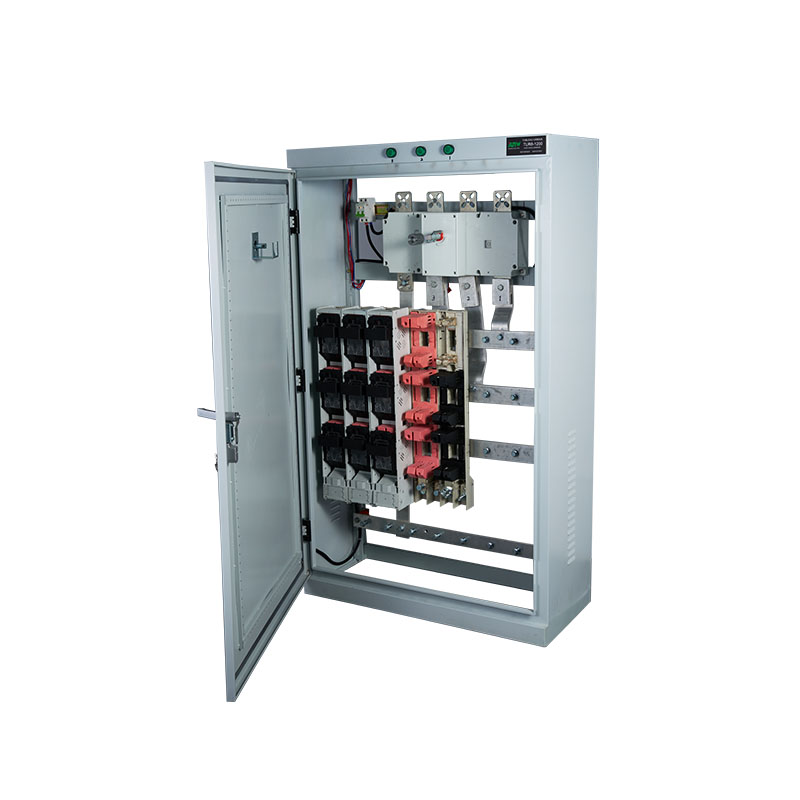

The unit is equipped with a bar-type fuse group, which is compatible with all specifications and mainstream brands of blade-type fuse links. It features strong universality and easy replacement, effectively reducing the cost of spare parts and later maintenance.
3.Safe & Intuitive Operation

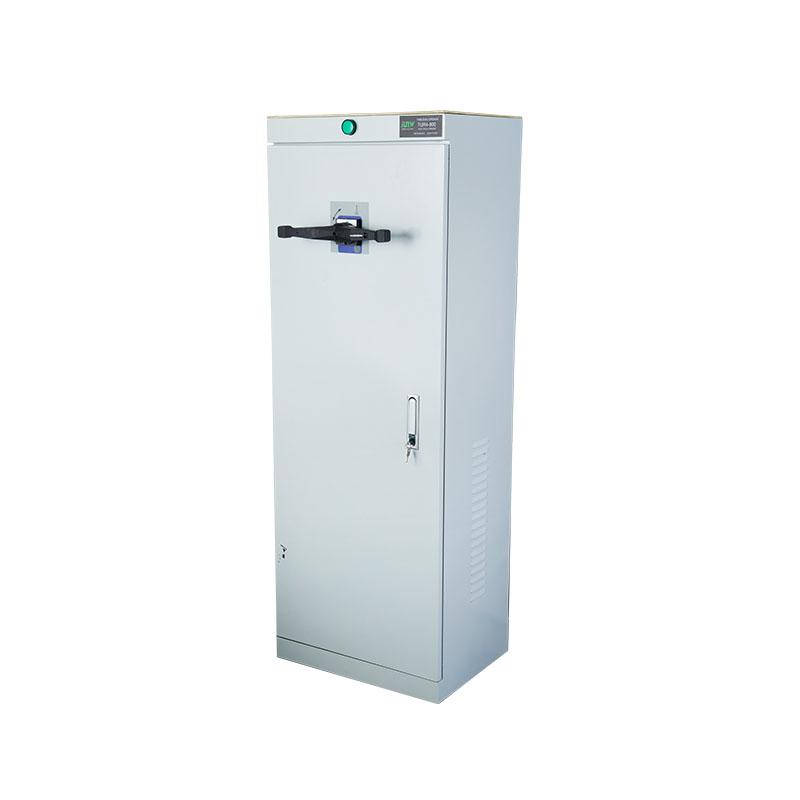

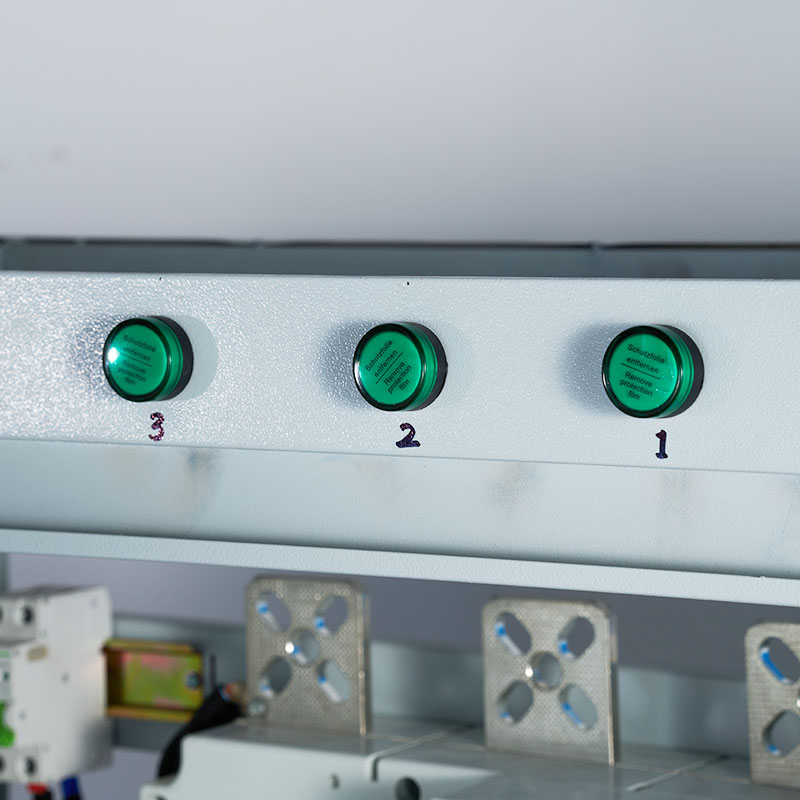

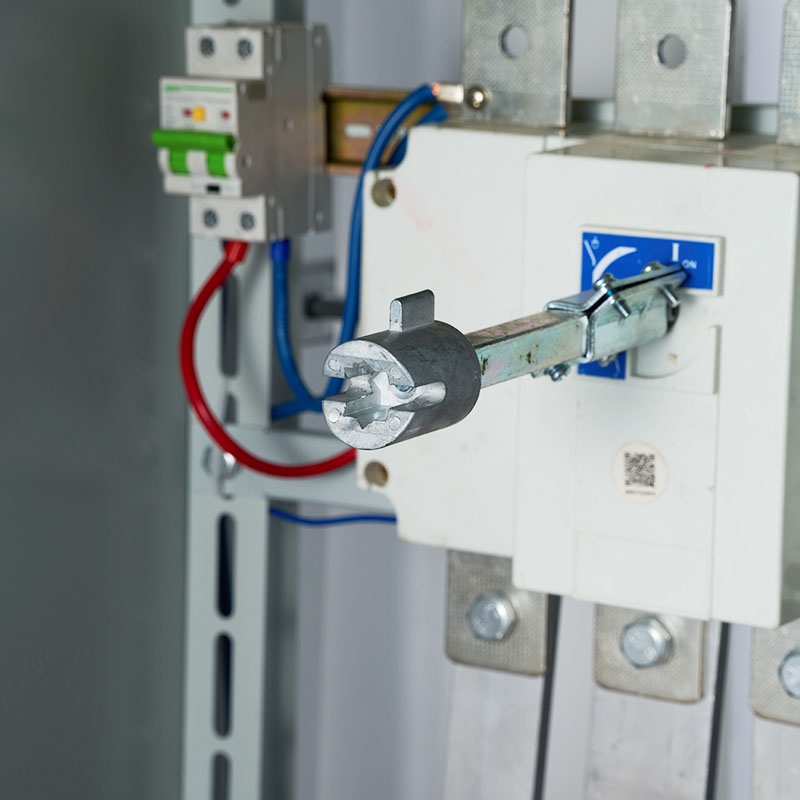

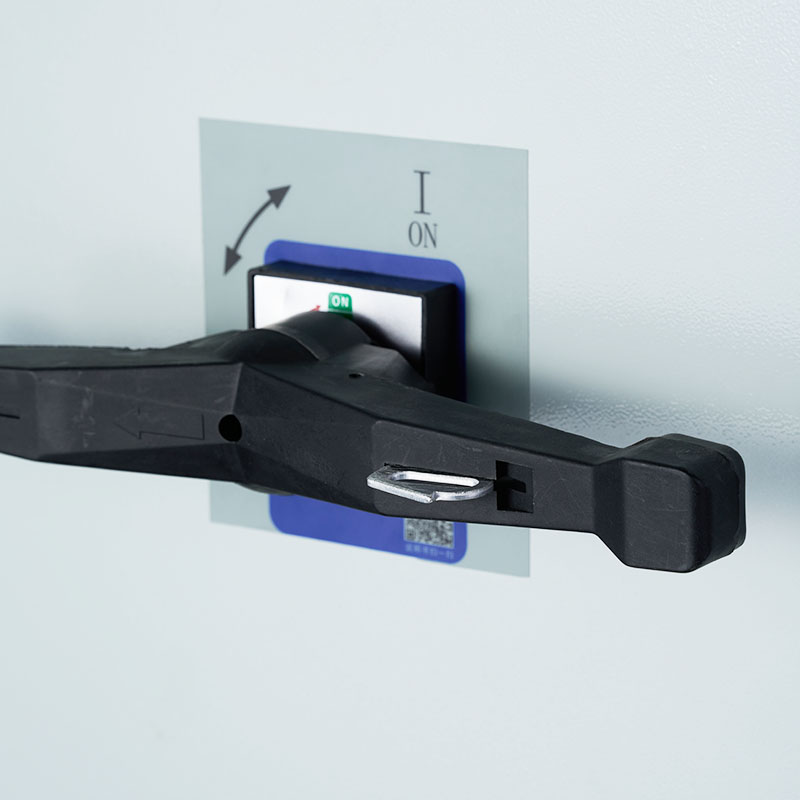

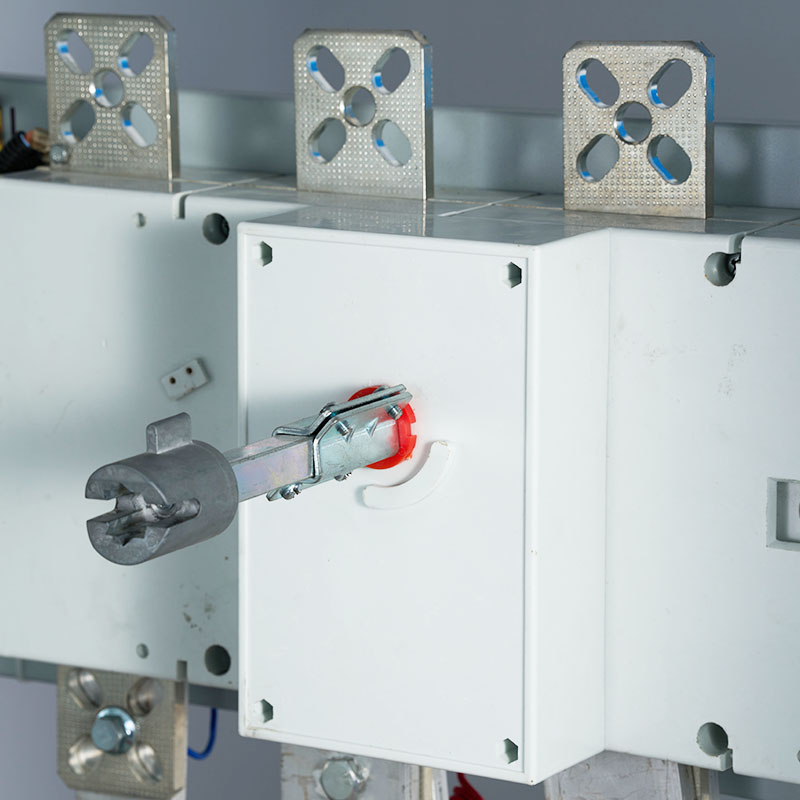

Equipped with on/off status indicators on the panel, the working state is clear at a glance. The matched operating handle supports direct switching outside the cabinet without opening the enclosure, which greatly improves operation convenience and on-site safety.
4.Practical Design & Reliable Installation
Built-in backup power supply facilitates safe equipment maintenance and power cut inspection. It supports vertical/horizontal installation with 4×M16 mounting holes and special brackets, and is equipped with grounding screws to meet strict electrical safety standards, suitable for MT/BT power stations and public lighting distribution systems.
