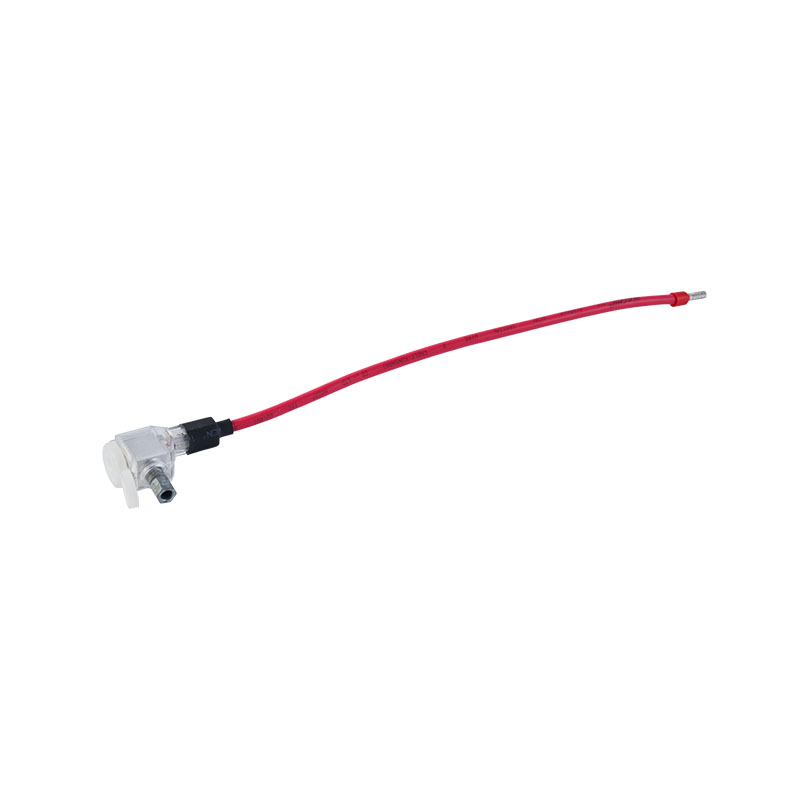

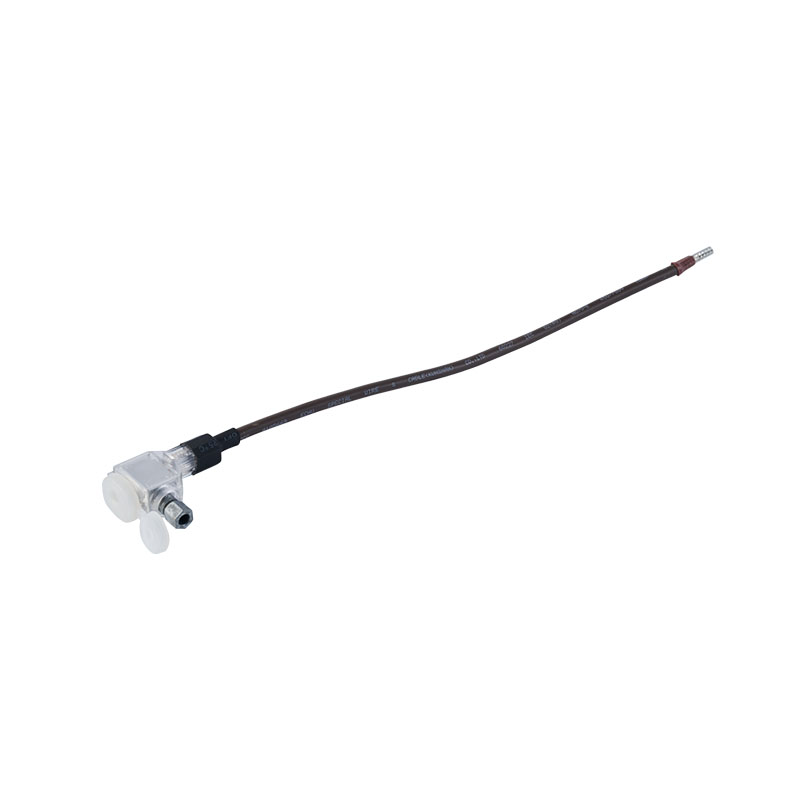

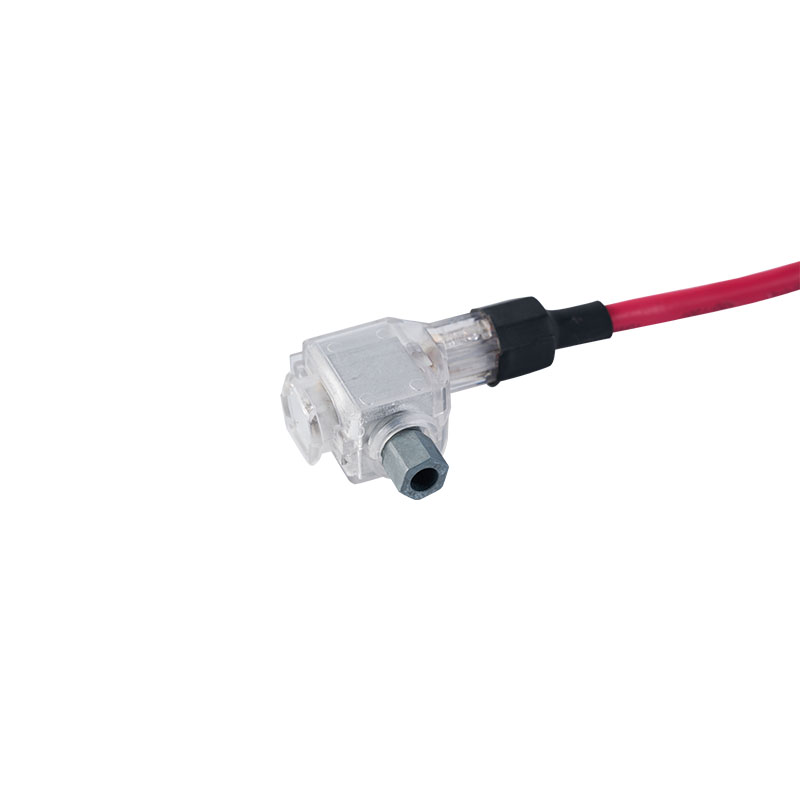

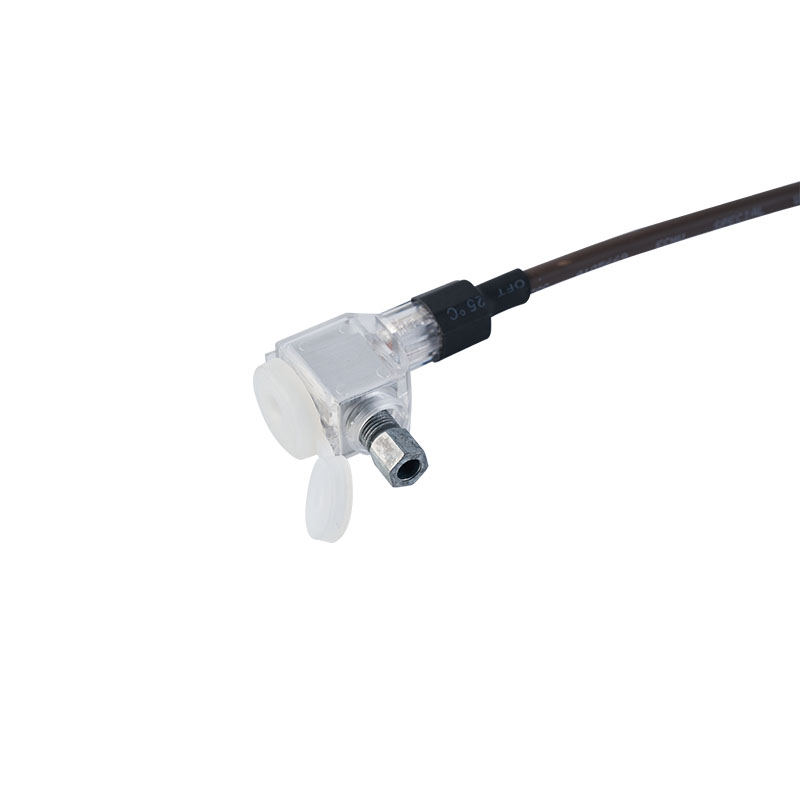

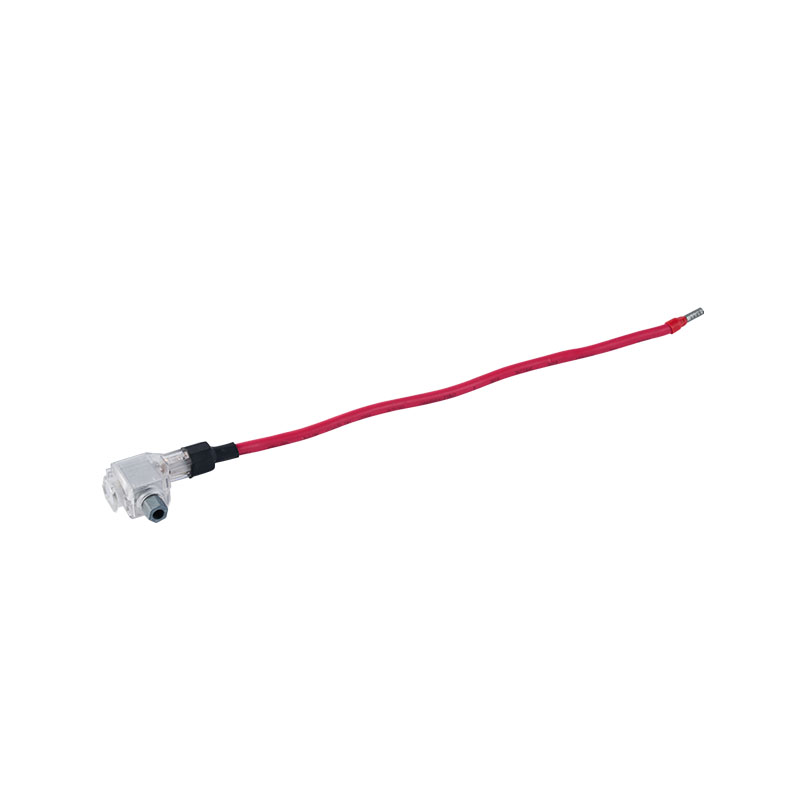

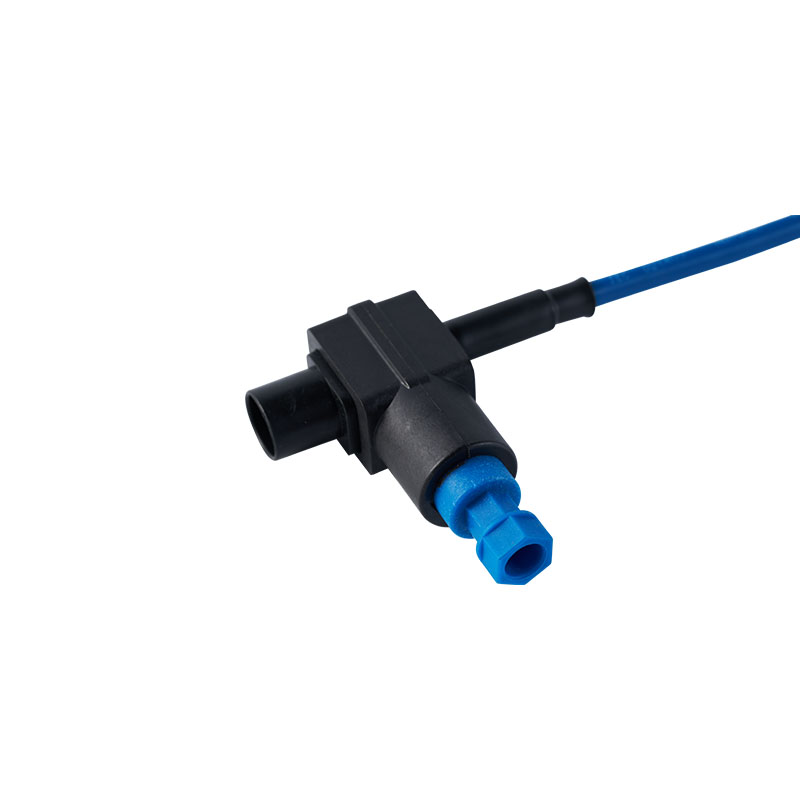

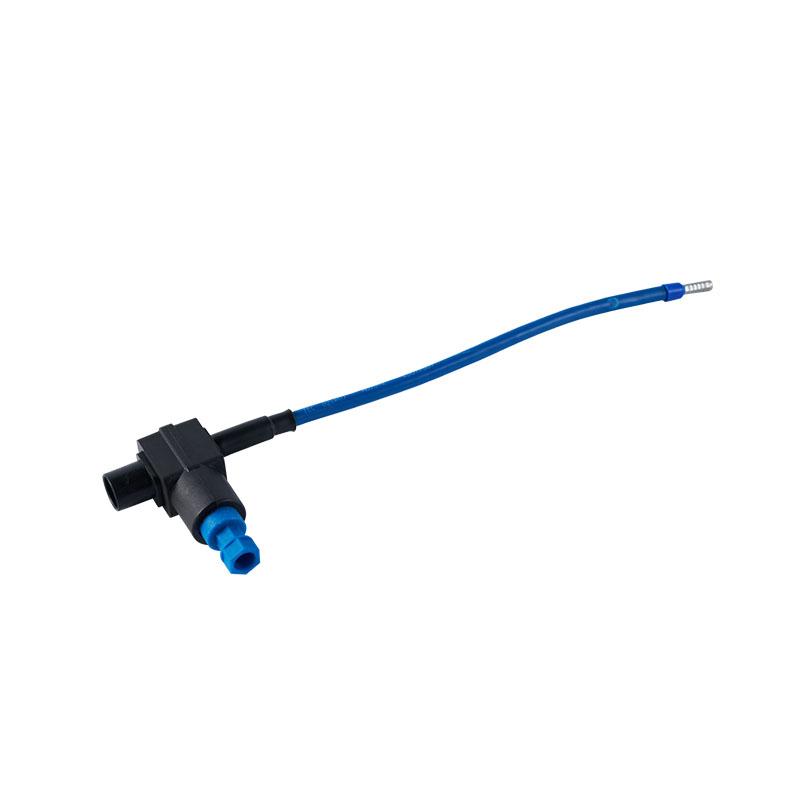

JUNW P446-P650 6-35 Insulation piercing nozzle

JUNW P Series Insulation Piercing Terminals (EBCP)
1.Core Product Advantages & Overall Features
JUNW P Series Insulation Piercing Terminals are premium connection solutions for low-voltage metering, circuit breaker, and distribution wiring. Key competitive strengths:
•Stripping-Free Universal Compatibility: Insulation piercing technology works with 6–35mm² copper/aluminum (Cu/Al) stranded/solid conductors, eliminating cable stripping and reducing installation errors.
•Safety & Compliance: IP2X-rated live part protection post-installation, shear-head screws ensure consistent, correct torque; transparent caps verify proper cable insertion, fully compliant with H-M24-2011-02598-FR French grid standards.
•High Performance & Durability: 63A rated current for 16mm² pigtails, 90A for 25mm² pigtails; flexible, space-saving design, robust materials withstand extreme low temperatures and harsh environments.
•Flexible Configurations: Offered in black (phase) / blue (neutral) colors, multiple lengths (190/235/500mm), and pre-assembled 2/4-piece kits for single/three-phase projects, streamlining procurement and installation.

2.Model-Specific Differentiation (Grouped by Specification)
•6-35/16, 235mm Length (63A, 16mm² Pigtail, Standard Duty):
oP446 (Black): Compact 235mm phase terminal, 10-pack, ideal for standard residential/commercial meter and circuit breaker wiring.

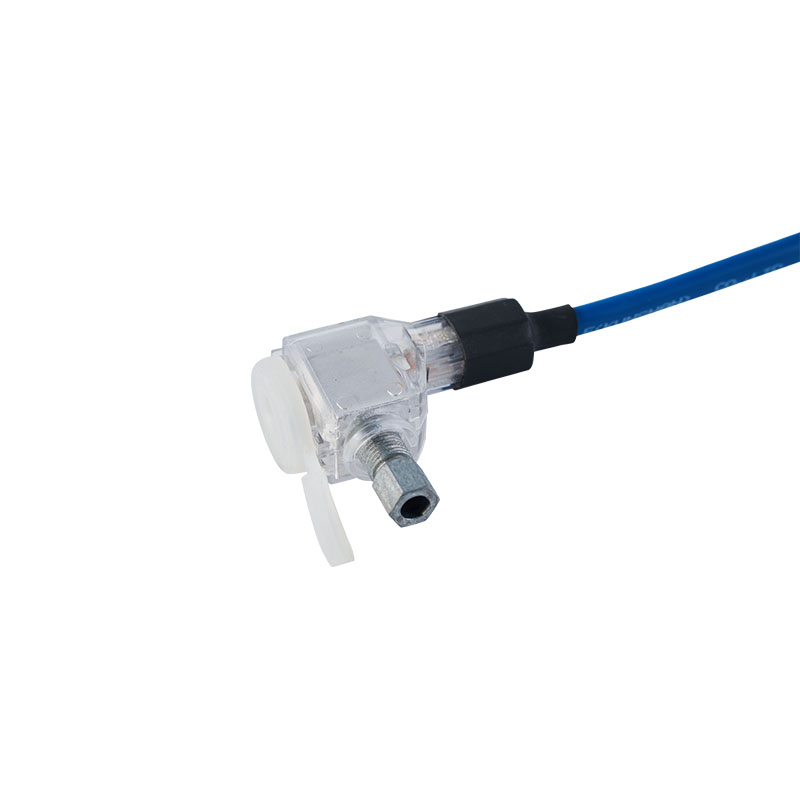

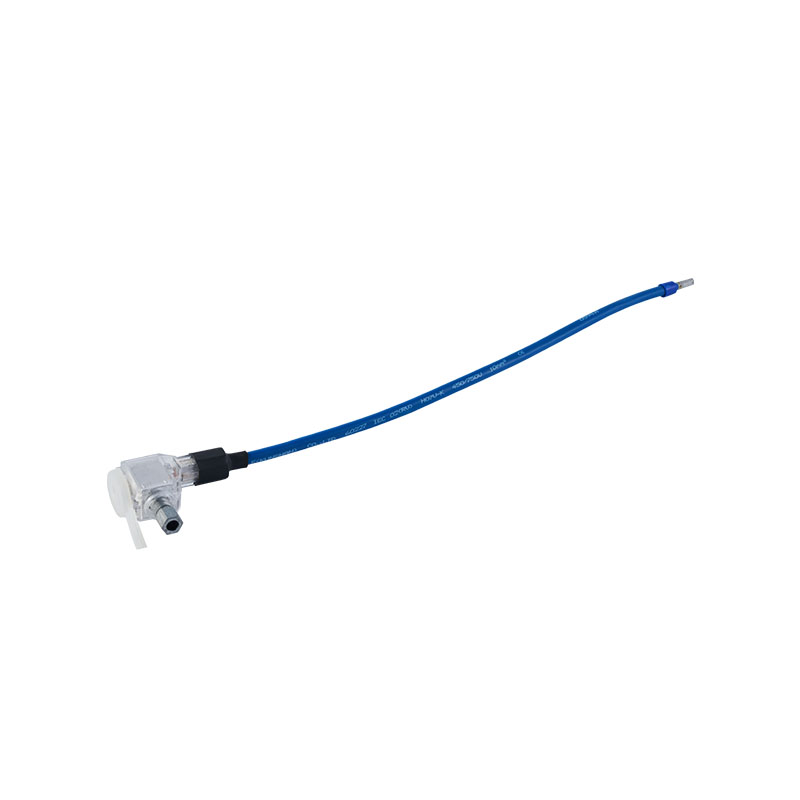

oP447 (Blue): 235mm neutral terminal, 10-pack, paired with P446 for neutral line connections.
oP648 (2-Piece Kit: 1B+1N): Pre-assembled 1-phase kit (1 black + 1 blue), single-unit, for residential single-phase metering.
oP651 (4-Piece Kit: 3B+1N): 3-phase + neutral kit (3 black + 1 blue), single-unit, for commercial three-phase distribution.
•6-35/16, 500mm Length (63A, 16mm² Pigtail, Long-Reach):
oP222 (Black): 500mm extended-length phase terminal, single-unit, for long-distance cabinet wiring.
oP223 (Blue): 500mm extended-length neutral terminal, single-unit, for extended neutral line runs.
•10-35/25, 190mm Length (90A, 25mm² Pigtail, Heavy-Duty):
oP448 (Black): 190mm high-current phase terminal, 10-pack, for 90A-rated high-power equipment.
oP449 (Blue): 190mm high-current neutral terminal, 10-pack, for heavy-duty neutral connections.
oP649 (2-Piece Kit: 1B+1N): 1-phase heavy-duty kit, single-unit, for high-power single-phase applications.
oP650 (4-Piece Kit: 3B+1N): 3-phase heavy-duty kit, single-unit, for industrial three-phase high-current distribution.
