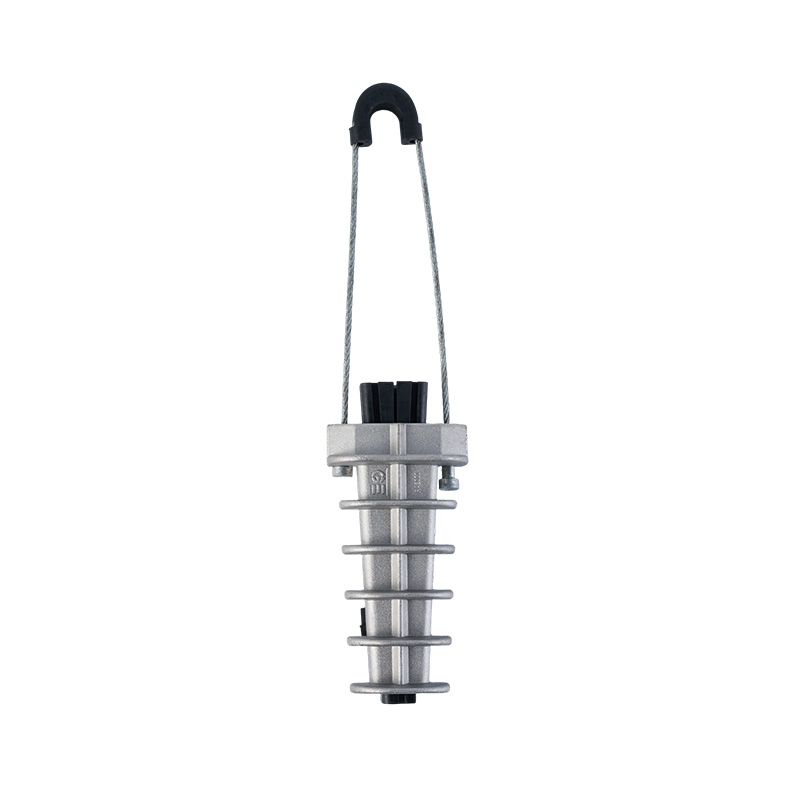

JUNW PAL1000 Insulated Dead End Clamp for ABC Lines

JUNW PAL1000 Insulating Dead End Clamp
1. Core Performance & Target Application
JUNW PAL1000 is a robust modular insulating dead end clamp engineered for 16–35mm² medium-section conductors, delivering a reliable 10kN rated breaking load. Tailored for low-to-medium voltage overhead distribution lines, it excels in terminal tensioning, branch line anchoring, and service drop connections, making it ideal for both urban and rural power infrastructure where consistent tension retention is critical.
2. Modular Wedge-Style Installation & Damage-Free Grip
Featuring a precision-engineered wedge mechanism, the PAL1000 enables stripping-free, tool-assisted installation that eliminates conductor damage. Its serrated, pressure-distributed jaws securely grip multi-stranded conductors without piercing insulation, preventing strand breakage or electrical performance degradation over time. The design accommodates a wide conductor diameter range (2–7mm), offering flexible compatibility for diverse line configurations.
3. Corrosion-Resistant All-Weather Construction
Built with a high-strength aluminum alloy housing and UV-stabilized insulating components, the clamp resists corrosion, UV degradation, and extreme temperature fluctuations. The fully sealed structure prevents moisture ingress, making it suitable for harsh environments including coastal regions, industrial zones, and areas with high pollution levels.
4. Low-Maintenance Long-Term Reliability
The PAL1000’s self-locking wedge design maintains constant clamping force, eliminating the need for periodic retightening. Its maintenance-free construction reduces operational costs, while the 10kN mechanical rating ensures stable performance under heavy wind loads or thermal cycling, providing long-lasting tension support for critical power distribution lines.
